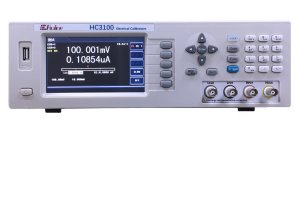

3100 Calibrator Specifications: Ver：1.05 | ||||
Source Accuracy (23°C ±5°C) | ||||
| Range | Resolution | Output Range | Accuracy | |
| Voltage | 100mV | 2uV | ±1mV～100mV | ±(0.03% of rdg + 5DGT ) |
| 1V | 20uV | ±100mV～1V | ±(0.03% of rdg + 5DGT ) | |
| 10V | 0.2mV | ±1V～10V | ±(0.03% of rdg + 5DGT ) | |
| 30V | 0.6mV | ±10V～30V | ±(0.03% of rdg + 5DGT ) | |
| Current | 1mA | 0.2uA | ±50uA～1mA | ±(0.03% of rdg + 5DGT ) |
| 10mA | 0.5uA | ±1mA～10mA | ±(0.015% of rdg + 3DGT ) | |
| 20mA | 1uA | ±10mA～20mA | ±(0.015% of rdg +3DGT ) | |
| 50mA | 1uA | ±20mA～50mA | ±(0.015% of rdg + 2DGT ) | |
Measurement Accuracy (23°C ±5°C) | ||||
| Voltage | 100mV | 2uV | ±1mV～100mV | ±(0.03% of rdg + 5DGT ) |
| 1V | 20uV | ±100mV～1V | ±(0.03% of rdg + 5DGT ) | |
| 10V | 0.2mV | ±1V～10V | ±(0.03% of rdg + 5DGT ) | |
| 30V | 0.6mV | ±10V～30V | ±(0.03% of rdg + 5DGT ) | |
| Current | 1mA | 0.2uA | ±10uA～1mA | ±(0.03% of rdg + 5DGT ) |
| 10mA | 1uA | ±1mA～10mA | ±(0.015% of rdg + 3DGT ) | |
| 20mA | 1uA | ±10mA～20mA | ±(0.015% of rdg + 3DGT ) | |
| 50mA | 1uA | ±20mA～50mA | ±(0.015% of rdg + 2DGT ) | |
Resistance Measurement Accuracy | ||||
| Range | ||||
| 0.1Ω～10MΩ | Meas.Vacc+Meas.Iacc | |||
Other | ||||
| Display | 5‘TFT LCD | |||
| Display update rate | 5 ～ 100 / S | |||
| Power Supply | 220Vac.50/60Hz,10VA | |||

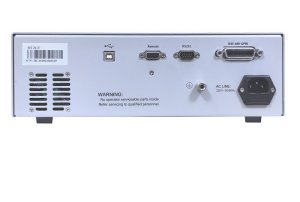

| Interface | GPIB.RS232.USB | |||
| Operating Temperature | 0℃～45℃ | |||
| Dimension (H x W x D) | 112mm X 320mm X 260mm | |||
注：以上所示精度为开机预热30分钟,温度在21℃～28℃环境，输出端接纯阻性无源负载。 输出与测量温度系数最大20ppm/°C. | ||||
